    Single Acting Hart Valve Positioner Intelligent Sanitary Control C41DY-LSB

    Ask Lasest Price
    Brand Name : TORLEO
    Model Number : TOP-5879F1-C41DY-LSB
    Certification : SIL3
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

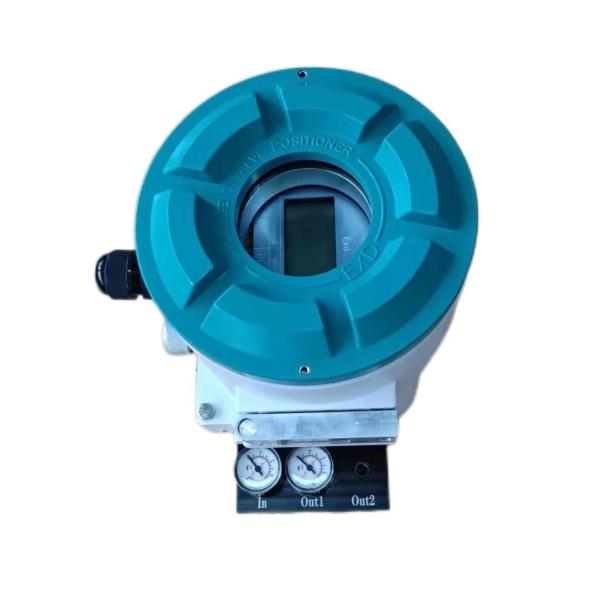

    Single Acting Hart Valve Positioner Intelligent Sanitary Control C41DY-LSB

    Smart valve positioner, dust explosion-proof ExtD, straight stroke, single acting, fail lock


    Supply air pressure
    Actuator air pressure
    Ambient temperature
    Position and pressure errors
    Total valve stem travel (like an odometer in an automobile)


    Performance indicators

    ItemIndicator
    Input signal4~20mA or 4~20mA+HART, split-range control can be set
    Sensor typeN/A
    Gas sourcepressure 1.4~6bar; no oil, no moisture, no dust and dirt
    Journey10~150mm
    Input resistance490☊(max.)/20mA(DC)
    Electrical interfaceM20*1.5 or customized
    Pneumatic interfaceNPT1/4
    Repeatability±0.3%F.S.
    Linear±0.3%F.S.
    Hysteresis±0.3%F.S
    Sensitivity±0.2%F.S
    Output characteristicslinear, quick opening (25:1, 50:1), equal percentage (1:25, 1:50)
    Protection classIP66
    Explosion-proof gradeExtDA20IP66T85℃
    Security levelSIL3
    Fault state

    fail lock

    Off power, off signal, the valve maintains position; add air lock valve to realize three-break position maintenance

    Operating temperature-30℃~85℃
    Materialdie-cast aluminum
    Gross weight3Kg
    Dimensions162L*152W*182H (mm)

    Product application field


    TORLEO brand TOP-5879F1 series smart valve positioner are used in conjunction with pneumatic control valves, and are widely used in metallurgy, power generation, paper-making, environmental protection and other industries where process control is required.


    Typical valve application

    Diaphragm control valve, single-acting ball valve, single-acting butterfly valve


    Technical features of the product

    • Nozzle baffle + symmetrical membrane valve structure, strong ability to resist dust, moisture and oil;

    • Built-in keyboard and large LCD screen, the positioner can be debugged without a handheld operator;

    • HART communication, modular design, convenient for users to choose and use;

    • Valve position output, modular design, convenient for users to choose and use;

    • Configure linear, quick opening, equal percentage and user-defined flow characteristics;

    • One-key auto-tuning operation to meet the needs of users for quick installation and fool-like debugging;

    • PID compound control algorithm can achieve 0.1-0.3% control accuracy.


    Selection guide for TOP-5879F1 C series smart valve positioner
