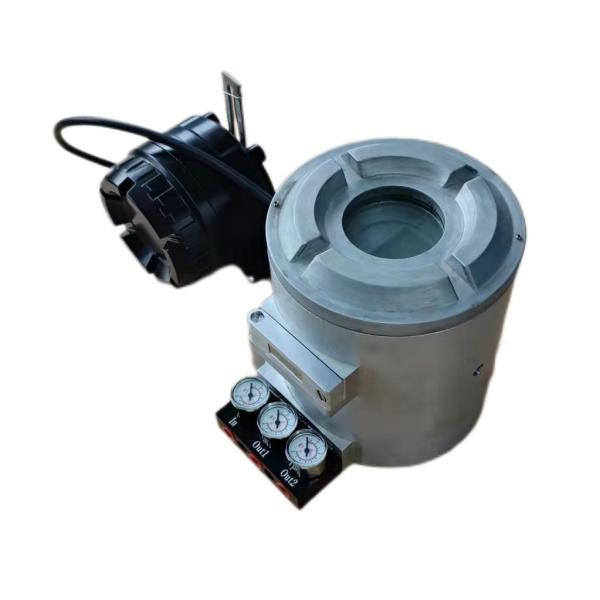

    Electro Pneumatic Rotary Valve Positioner HART Double Acting C45DF-RDB

    Ask Lasest Price
    Brand Name : TORLEO
    Model Number : TOP-5879F1-C45DF-RDB
    Certification : SIL3
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Electro Pneumatic Rotary Valve Positioner HART Double Acting C45DF-RDB

    Smart valve positioner, dust explosion-proof ExtD, angular stroke, double acting, fail lock, stainless steel corrosion-resistant, split body anti-high temperature vibration


    Input components: one of the seven major parts of the conventional mode of the hardware structure of the intelligent valve positioner. It is used to connect the current control signal (input given value) and accept the feedback signal from the valve position sensor to the control valve stroke detection, and support the primary function of positioning control. For HART signal mode, the FKS modem is set in the input loop for HART digital signal separation. For field bus types such as Profibus-PA and FF that accept digital control signals, there is no current input in the input component, but the external bus network is connected through the communication interface. The valve position feedback signal is to transmit the valve position to the valve position sensor through the control valve stem (shaft) through the feedback rod and other mechanical connecting parts. Resistive displacement (angle) sensor.


    Performance indicators

    ItemIndicator
    Input signal4~20mA or 4~20mA+HART, split-range control can be set
    Sensor typeflameproof stucture rotary
    Gas sourcepressure 1.4~6bar; no oil, no moisture, no dust and dirt
    Journey0~120º
    Input resistance490☊(max.)/20mA(DC)
    Electrical interfaceM20*1.5 or customized
    Pneumatic interfaceNPT1/4
    Repeatability±0.3%F.S.
    Linear±0.3%F.S.
    Hysteresis±0.3%F.S
    Sensitivity±0.2%F.S
    Output characteristicslinear, quick opening (25:1, 50:1), equal percentage (1:25, 1:50)
    Protection classIP66
    Explosion-proof gradeExtDA20IP66T85℃
    Security levelSIL3
    Fault state

    fail lock

    Off power, off signal, off gas, three-off to keep the position. It is recommended to add a gas lock valve for strict gas cut-off

    Operating temperature-30℃~85℃ (host), -40℃~110℃ (sensor)
    Material316 stainless steel
    Gross weightMain unit 3Kg, sensor 1Kg
    Dimensions162L*152W*182H (mm)

    Product application field


    TORLEO brand TOP-5879F1 series smart valve positioner are used in conjunction with pneumatic control valves, and are widely used in metallurgy, power generation, paper-making, environmental protection and other industries where process control is required.


    Typical valve application

    Double-acting ball valve, double-acting butterfly valve, V-shaped ball valve, yellow valve, damper valve


    Technical features of the product

    • Nozzle baffle + symmetrical membrane valve structure, strong ability to resist dust, moisture and oil;

    • Built-in keyboard and large LCD screen, the positioner can be debugged without a handheld operator;

    • HART communication, modular design, convenient for users to choose and use;

    • Valve position output, modular design, convenient for users to choose and use;

    • Configure linear, quick opening, equal percentage and user-defined flow characteristics;

    • One-key auto-tuning operation to meet the needs of users for quick installation and fool-like debugging;

    • PID compound control algorithm can achieve 0.1-0.3% control accuracy.


    Selection guide for TOP-5879F1 C series smart valve positioner
